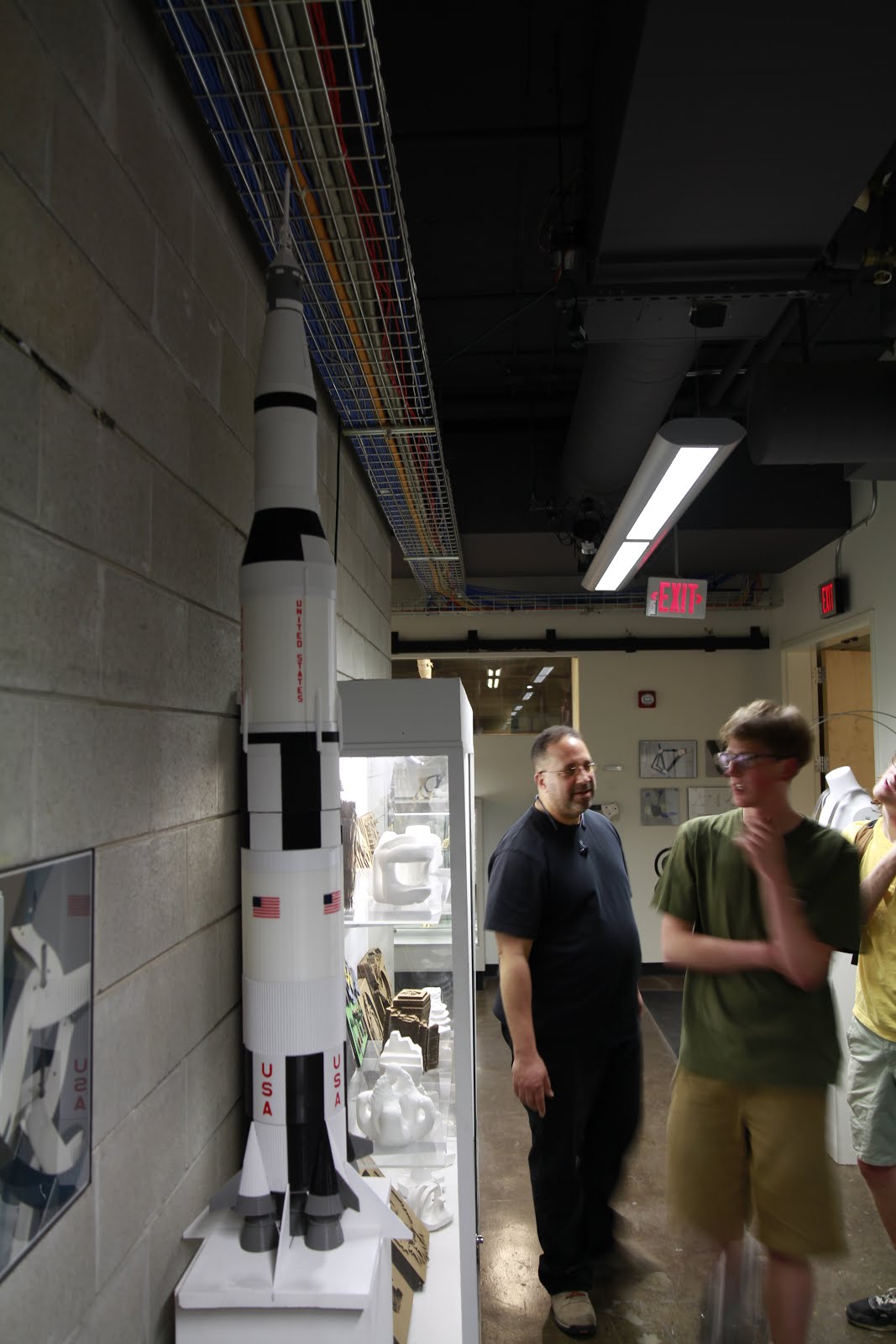

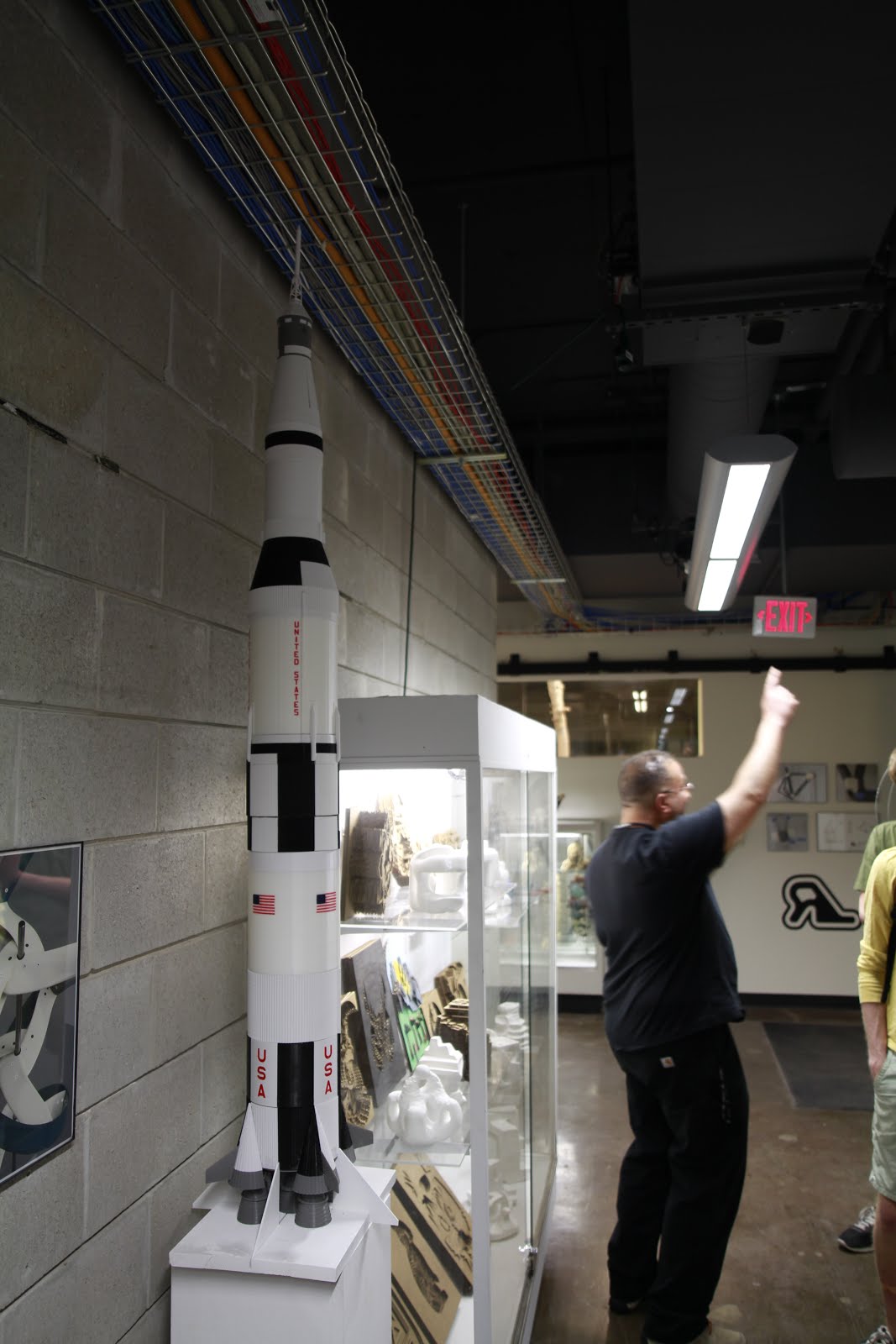

Last blog for the Saturn V project

lots of progress on the

Just ned to add the F1 rockets to the stage 1 stack!

Gantry progress

Lots of gantry progress see the attached pictures.

First stage tanks "big prints"

First stage tanks are almost complete.

This is the last stage 1 tank section being printed at home tank section #4.  12-hour print!

I won a scholarship at the Medal exhibition for my helmet project --very proud--also note that I can draw.



First stage tanks sections 2 and 3.  Section 1 is in the digital lab with the other rocket parts.

Second stage progress

I printed some of the large sections for the second stage and also 2 of the green tanks.

https://docs.google.com/spreadsheets/d/1YOL_YNDCH8uX0iMmKidOUyqMXgv8y02gFb8lAMYXyYc/edit#gid=1019493867

Follow the attached link to the parts sheet.  Note greater than half of the parts are printed.

Printer progress 3/26/17

Printer progress--

Was able to wire the heated bed to the 24 volt supply today.  I also added a conduit to the loose wires under the heated bed.

Saturn V and Printer progress

First the printer--I have wired everything to the power supply and mini Rambo board except the;

1.  y-axis motor
2. extruder motor
3. print blower
4. bed heater

The y-axis needs a longer wire set and the wire came in from amazon on Sunday

Same with the extruder and print blower.

The bed heater wire need a small conduit run so the wire has a place to go.

I'll be able to get to these things on Thursday--Tuesday I'll be finishing up my project for 378.

I'm printing lots of red gantry parts for the rocket and will be able to have (3) printers running at the same time over spring break.  Also I plan to begin gluing the gantry subassemblies together this week

That's all I got.  Movin ahead!

Saturn V progress 3/5/17

Note I am in the process of assembling the third stage of the rocket.  Also, I'm printing parts for the gantry.

Printer progress

Today is all about mounting the power supplies and mini-rambo board.  I was able to mount the solid state relay as well.

Printer progress, Saturn V progress

The only progress I made on the printer this weekend was work out the location for the 12-volt DC and 24-volt DC  power supplies.  I need to locate the 12-volt to 24 volt SCR for the heated bed as well.  So as you can see I'm working my way into the electrical end of the printer project.  The next step is to put 12-volt DC power on the mini-rambo board to make certain it will power-up.

I printed the parts for the launch escape assembly yesterday and plan to assemble those parts tonite.
Getting there is the best part!
